Single End Tenoner Machine
SETM-2HD-1
SETM-2HD-3
SETM-3HD-1
SETM-3HD-3
SETM-2HD-1

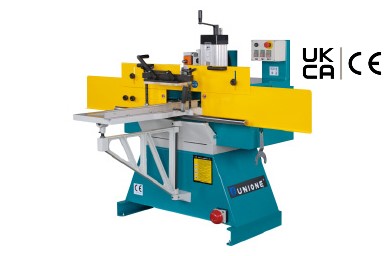

(※ Picture for reference only. Actual product may vary.)
SETM-2HD-3
(※ Picture for reference only. Actual product may vary.)
SETM-3HD-1
(※ Picture for reference only. Actual product may vary.)
SETM-3HD-3
(※ Picture for reference only. Actual product may vary.)
| SPEC.\MODEL | SETM-2HD-1 | SETM-2HD-3 |
| MOTOR RATING | 2x2.2kw (SIGLE PHASE) | 2x2.2kw (THREE PHASE) |
| DIAMETER OF TOOLING BOTTOM BLOCK | Supplied | Supplied |
| DIAMETER OF TOOLING TOP BLOCK | Supplied | Supplied |
| TABLE SIZE | 800x310mm | 800x310mm |
| HORIZONTAL ADJUSTMENT SCRIBING HEAD | NA | NA |
| MAIN CUTTER HEADS | 2x 175x 60mm | 2x 175x 60mm |
| LENGTH OF SHAFT (LIMITER SCRIBE HEAD) | NA | NA |
| HORIZONTAL ADJUSTMENT TOP BLOCK | ±32mm | ±32mm |
| MAX.LENGTH OF TENON SIGLE PASS | 155mm | 155mm |
| MAX.LENGTH OF TENON TWO PASSES | 205mm | 205mm |
| DIAMETER OF TOOLING SCRIBING HEAD | NA | NA |
| DUST EXTRACTION OUTLET (REQ:2800 CMH) | 2x150mm | 2x150mm |
| LIMITER SCRIBE HEAD SHAFT DIAMETER | NA | NA |
| LIMITER SCRIBE HEAD | NA | NA |
| TIMER CAP' HEIGHT FENCE AT 45° | 130mm | 130mm |
| TIMER CAP' WIDTH FENCE AT 45° | 195mm | 195mm |
| TIMER CAP' HEIGHT FENCE AT 90° | 310mm | 310mm |
| VERTICAL ADJUSTMENT BOTTOM BLOCK | 0-60mm | 0-60mm |
| VERTICAL ADJUSTMENT SCRIBING HEAD | 95mm | 95mm |
| VERTICAL ADJUSTMENT TOP BLOCK | 0-120mm | 0-120mm |
| OVERALL (LXWXH) | 1320x 1020x 1560mm | 1320x 1020x 1560mm |
| N.W. | 420kgs | 420kgs |
| SPEC.\MODEL | SETM-3HD-1 | SETM-3HD-3 |
| MOTOR RATING | 3x2.2kw (SIGLE PHASE) | 2x2.2kw, 1x4.0kw (THREE PHASE) |
| DIAMETER OF TOOLING BOTTOM BLOCK | Supplied | Supplied |
| DIAMETER OF TOOLING TOP BLOCK | Supplied | Supplied |
| TABLE SIZE | 800x310mm | 800x310mm |
| HORIZONTAL ADJUSTMENT SCRIBING HEAD | 30mm | 30mm |
| MAIN CUTTER HEADS | 2x 175x 60mm | 2x 175x 60mm |
| LENGTH OF SHAFT(LIMITER SCRIBE HEAD) | 75mm | 75mm |
| HORIZONTAL ADJUSTMENT TOP BLOCK | ±32mm | ±32mm |
| MAX.LENGTH OF TENON SIGLE PASS | 155mm | 155mm |
| MAX.LENGTH OF TENON TWO PASSES | 205mm | 205mm |
| DIAMETER OF TOOLING SCRIBING HEAD | 210mm | 210mm |
| DUST EXTRACTION OUTLET (REQ:2800 CMH) | 2x150mm | 2x150mm |
| LIMITER SCRIBE HEAD SHAFT DIAMETER | 30mm | 30mm |
| LIMITER SCRIBE HEAD | 1x 125x 60mm | 1x 125x 60mm |
| TIMER CAP' HEIGHT FENCE AT 45° | 130mm | 130mm |
| TIMER CAP' WIDTH FENCE AT 45° | 195mm | 195mm |
| TIMER CAP' HEIGHT FENCE AT 90° | 310mm | 310mm |
| VERTICAL ADJUSTMENT BOTTOM BLOCK | 0-60mm | 0-60mm |
| VERTICAL ADJUSTMENT SCRIBING HEAD | 95mm | 95mm |
| VERTICAL ADJUSTMENT TOP BLOCK | 0-120mm | 0-120mm |
| OVERALL (LXWXH) | 1320x 1020x 1560mm | 1320x 1020x 1560mm |
| N.W. | 470kgs | 470kgs |
※ Picture for reference only. Actual product may vary.
