Circular Sawing Machine

TCUS-10"L

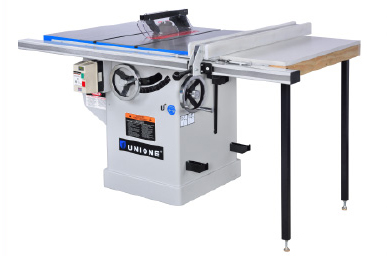

  • 10" LEFT TILT ARBOR TABLE SAW

    1. 10" LEFT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH BIESMYER TYPE FENCE AND 30" RAIL SET.
    4. WITH UL/CSA TYPE BLADE GUARD
    5. 30" WOOD TABLE WITH TWO LEGS (OPTIONAL)

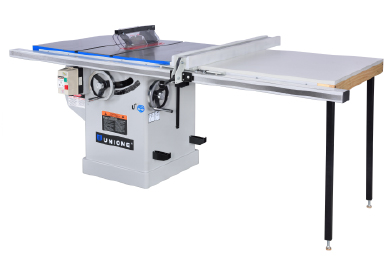

  • 10" LEFT TILT ARBOR TABLE SAW

    1. 10" LEFT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH BIESMYER TYPE FENCE AND 50" RAIL SET
    4. WITH UL/CSA TYPE BLADE GUARD
    5. 50" WOOD TABLE WITH TWO LEGS (OPTIONAL)

(※ Picture for reference only. Actual product may vary.)
Close

TCUS-10"SS

(※ Picture for reference only. Actual product may vary.)
Close

TCUS-12"L/R

  • 12" LEFT TILT ARBOR TABLE SAW

    1. 12" LEFT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH BIESMYER TYPE FENCE AND 50" RAIL SET
    4. WITH UL/CSA TYPE BLADE GUARD
    5. 30" WOOD TABLE WITH TWO LEGS (OPTIONAL)

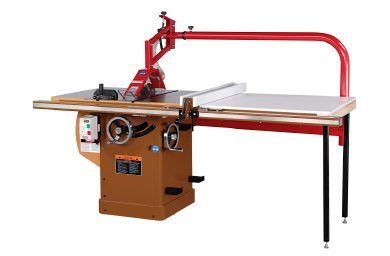

  • 12" LEFT TILT ARBOR TABLE SAW

    1. 12" LEFT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH BIESMYER TYPE FENCE AND 50" RAIL SET
    4. WITH OVERHEAD TYPE BLADE GUARD (OPTIONAL)
    5. 50" WOOD TABLE WITH TWO LEGS (OPTIONAL)

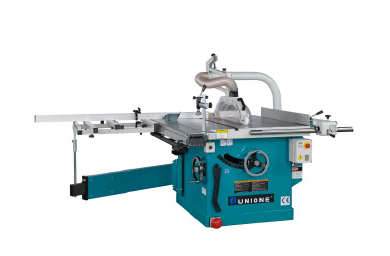

  • 12" LEFT TILT ARBOR TABLE SAW

    1. 12" LEFT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH BIESMYER TYPE FENCE AND 50" RAIL SET
    4. WITH EURO TYPE BLADE GUARD
    5. 50" WOOD TABLE WITH TWO LEGS (OPTIONAL)
    6. FOOT SWITCH (OPTIONAL)
    7. 1.25M SLIDING TABLE AND OUTRIGGER TABLE(OPTIONAL)

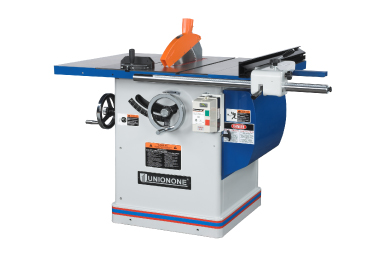

  • 12" RIGHT TILT ARBOR TABLE SAW

    1. 12" RIGHT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH EUROPE TYPE FENCE AND RAIL SET
    4. WITH CE TYPE BLADE GUARD
    5. WITH TWO EXTENSION TABLE

  • 12" RIGHT TILT ARBOR TABLE SAW

    1. 12" RIGHT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH EUROPE TYPE FENCE AND RAIL SET
    4. WITH EURO TYPE BLADE GUARD
    5. WITH UST-36 SLIDING TABLE (OPTIONAL)
    6. WITH REAR EXTENSION TABLE

  • 12" RIGHT TILT ARBOR TABLE SAW

    1. 12" RIGHT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH EUROPE TYPE FENCE AND RAIL SET
    4. WITH EURO TYPE BLADE GUARD
    5. 50" WOOD TABLE WITH TWO LEGS (OPTIONAL)
    6. 1.5M SLIDING TABLE AND OUTRIGGER TABLE(OPTIONAL)

(※ Picture for reference only. Actual product may vary.)
Close

TSCE-400R

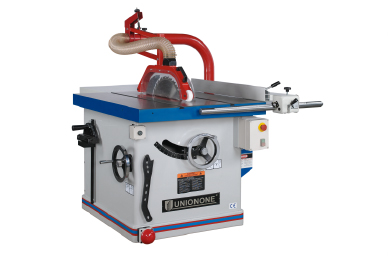

  • 400MM RIGHT TILT ARBOR TABLE SAW

    1. 400MM RIGHT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH 685MM EURO TYPE FENCE AND RAIL.
    4. WITH 685MM OVERHEAD GUARD
    5. WITH FOOT STOP SWITCH

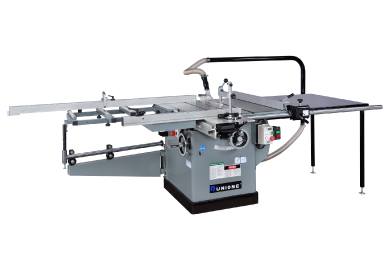

  • 400MM RIGHT TILT ARBOR TABLE SAW

    1. 400MM RIGHT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH 1250MM EURO TYPE FENCE AND RAIL.
    4. WITH 1250MM OVERHEAD GUARD
    5. WITH FOOT STOP SWITCH
    6. WITH 1.25M SLIDING TABLE AND OUTRIGGER TABLE(OPTIONAL)
    7. WITH EXTENSION TABLE (OPTIONAL)

(※ Picture for reference only. Actual product may vary.)
Close

TSCE-450R

  • 450MM RIGHT TILT ARBOR TABLE SAW

    1. 450MM RIGHT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH 685MM EURO TYPE FENCE AND RAIL.
    4. WITH 685MM OVERHEAD GUARD
    5. WITH FOOT STOP SWITCH

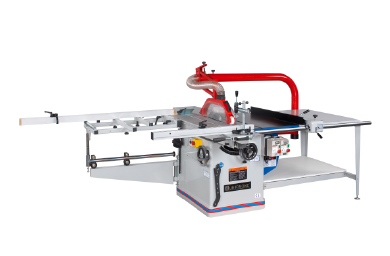

  • 450MM RIGHT TILT ARBOR TABLE SAW

    1. 450MM RIGHT TILT ARBOR TABLE SAW
    2. WITH MAGNETIC SWITCH
    3. WITH 1250MM EURO TYPE FENCE AND RAIL.
    4. WITH 1250MM OVERHEAD GUARD
    5. WITH FOOT STOP SWITCH
    6. WITH 1.25M SLIDING TABLE AND OUTRIGGER TABLE(OPTIONAL)
    7. WITH EXTENSION TABLE (OPTIONAL)

(※ Picture for reference only. Actual product may vary.)
Close
SPEC.\MODELTCUS-10"LTCUS-12"L/R
Blade Diameter10"12"
Arbor Diameter5/8"1"
Max Cut Depth3"4"
Max Cut Depth at 45o2-1/8"2-7/8"
Table in Front of Saw Blade10"
Dust Port Diameter4"
Table Height33-7/8"
Cast Iron Table Size （w/ Ext. Wing）42"x29"44"x31.5"
Cast Iron Table Size （w/o Ext. Wing）20"x29"24"x31.5"
Arbor Speed （RPM）4,300 RPM
Motor （TEFC） TCUS 10/12-3-13HP,Single Phase, 230 Volt
TCUS-10/12-5-15HP,Single Phase 230 Volt
TCUS-10/12-5-35HP,Three Phase 230/460 Volt
TCUS-10/12-7½-3NAt7½HP,Three Phase 230/460Volt
Net Weight （lbs）330407
TCUS-10"SS
MAIN BLADE DIAMETER254MM
SCORING BLADE DIAMETER102MM
MAIN BLADE  ARBOR DIAMETER30MM
SCORING BLADE ARBOR DIAMETER20MM
MAIN BLADE MAXIMUM DEPTH OF CUT77MM
SCORING BLADE MAXIMUM DEPTH OF CUT7MM
MAIN BLADE MAXIMUM THICKNESS AT 45° CUT53MM
SCORING BLADE MAXIMUM THICKNESS AT 45° CUT6.35MM
TABLE IN FRONT OF SAW  BLADE AT MAXMUM CUT305MM
DUST PORT DIAMETER100MM
TABLE HEIGHT860MM
TABLE SIZE(WITHOUT EXTENSION TABLE)280X937MM
TABLE SIZE(WITH EXTENSION TABLE)536X937MM
PANEL SLIDING TABLE SIZE320X1500MM
MAIN ARBOR SPEED4300RPM
SCORING ARBOR SPEED8000RPM
N.W.(INCLUDE SLIDING TABLE SET_480KGS
SPEC.\MODELTSCE-400RTSCE-450R
Max. awblade diameter (mm)400450
Sawblade bore (mm)3030
Max. cutting height at 90°130155
Max. cutting height at 45°80105
Spindle speed (50HZ, RPM)36003100
Motorpower5HP/3PH or 5HP/1PH7.5HP/3PH or 6HP/1PH
Motorpower (optional)7.5HP/3PH10HP/3PH
Working table (mm)1125 x 9001165 x 900
Height of table (mm)850850
Cutting width (mm)680 / 1260 (optional)680 / 1260 (optional)
Sliding table (mm)1250x246 (optional) 1250x246 (optional)
　1500x246 (optional)1500x246 (optional)
Rear ext. table (mm)600x600600x600
Weight (kg)430450
Dust extraction outlet (mm)  Machine150150
※ Picture for reference only. Actual product may vary.
